Description

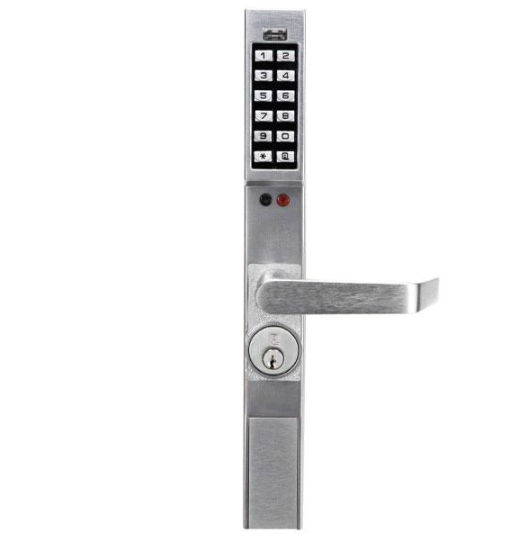

Trilogy Narrow Stile Keypad Lever Lock w/ Audit Trail supports Adams Rite® latch. products. Get field-proven Trilogy® keyless access lock convenience anywhere there’s a Narrow Stile compatible door. Weatherproof, all-metal, and vandal-resistant, they offer automatic lock or free passage schedules to Adams Rite® latch applications, emergency global lockdown in seconds, and have unsurpassed battery life. The DL1300 series is a rugged entry lock of advanced design with several programmable features.
More Information Below
SPECIFICATIONS:
LOCK FUNCTION
Entrance Narrow Stile Keypad Lever Lock Exit Trim w/ Audit Trail
DOOR THICKNESS
Only Stile thickness 1 ¾”
BACKSET
31/32”,1 1/8’ and 1-1/2”
HANDING
Non-handed; fully field-reversible
LEVER TRIM
Leverset compatible with Adams Rite 4500, 4700 & 4900 series deadlatch
TAILPIECE
Tailpiece not Included
POWER
Long-life, battery-operated for 100,000 and 80,000 cycles respectively, typical on 2 lithium 3V batteries, supplied; low battery alert
CYLINDER
1-1/4” supplied (Supports 1-1/8, 1-1/4, and 1-3/8”)
PROGRAMMABLE
Yes
USER CODES
support 2000 users, PC programming/reporting and features 40,000 events audit trail by the user and 500 events schedule/real-time clock (e.g. lock/unlock by time)
WEATHERPROOF
-31˚ to +151˚F (-35˚ to +66˚C)
FINISH
26D Satin Chrome
Return Policy: We accept returns on unopened products up to 30 days after the date of purchase. We do not accept opened/damaged/defective goods. To return affected items please contact Alarm Lock directly at 1-800-645-9440 or visit their support page
here
Downloads:
Brochure
Specifications
