Description

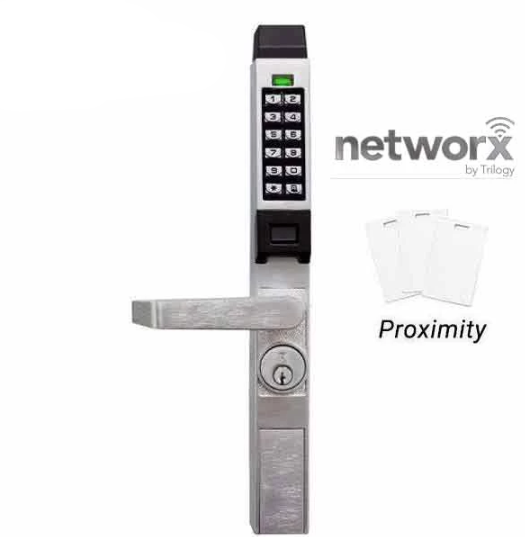

The Trilogy PDL1300-NW Narrow-Stile Digital Networx PROX Lever Lock w/ Wireless Access
Trilogy Narrow Stile Keypad Lever Lock w/ Audit Trail supports Adams Rite® latch. products. Get field-proven Trilogy® keyless access lock convenience anywhere there’s a Narrow Stile compatible door. Weatherproof, all-metal, and vandal-resistant, they offer automatic lock or free passage schedules to Adams Rite® latch applications, emergency global lockdown in seconds, and have unsurpassed battery life. The DL1300 series is a rugged entry lock of advanced design with several programmable features.
Built-in Proximity Reader: Easy Tap & Add batch prox ID card enrollment mode allows many cards to be quickly added without PC –also– downloadable from PC or prox enroller tool
Features Alarm Locks Networx connectivity so you can communicate with up to 63 different locks via a gateway connection
Include a mortise cylinder that has 2 keys included
More Information Below
SPECIFICATIONS:
LOCK FUNCTION
Entrance Narrow-Stile PROX Keypad Lever Lock w/ Audit Trail
DOOR THICKNESS
Only Stile thickness 1 ¾”
BACKSET
3 1/32”,1 1/8’ and 1 1/2”
HANDING
Non-handed; fully field-reversible
LEVER TRIM
Leverset compatible with Adams Rite 4500, 4700 & 4900 series deadlatch
POWER
Long-life, battery-operated for 80,000 to 100,000 Cycles respectively, typical on two 3-Volt 123A Lithium batteries, supplied; low battery alert
CYLINDER
6-pin standard mortise cylinder in SC1 Keyway supplied (Supports 1-1/2″ 1-3/8”)
KEYS
2 Keys Included
CAMS
Cams supplied works with generic Alarm Lock cylinder
PROGRAMMABLE
Yes
USER CODES
support 2000 users by PIN, HID Prox ID cards, or fobs. PC programming/reporting and features 40,000 events audit trail by the user and 500 events schedule/real-time clock (e.g. lock/unlock by time)
PROXIMITY FREQUENCY
125 kHz
GATEWAYS & COMPATIBILITY
Choice of networking options for any application, control 63 locks per Gateway and 2016 Locks per system. Compatible with AL-IME2, AL-IME2-80211, AL-IME2-POE
SOFTWARE
Free Windows-based software for programming, entering users, and receiving time-/date-stamped (by user) 35K event audit trail from the lock.
WEATHERPROOF
-31˚ to +151˚F (-35˚ to +66˚C)
CONSTRUCTION
Zinc Alloy, Vandal Resistant
FINISH
26D Satin Chrome
