Description
LK-2830-DC
This is a

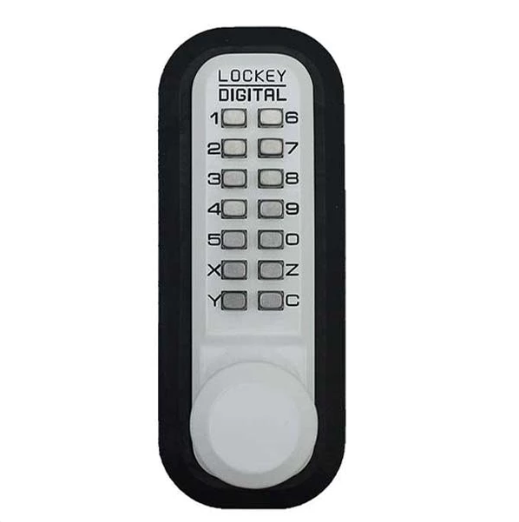

Lockey 2830-DC Mechanical Keyless Lock
with
Passage Function, Double Combination,
and
Knob.
Features
Keypad on both sides
Mechanical, keyless lock
Replaces 2230
One user code with thousands of possible combinations
Knob on exterior and interior
Auto-locking with passage function
Reversible handing
Adjustable latch
Covers standard 2 1/8” hole
Specifications
DIMENSIONS
5 5/8” L x 1 5/8″ W x 2 1/4″ D
FINISHES AVAILABLE
Antique Brass; Bright Brass; Satin Chrome; Satin Nickel; Jet Black; White; Oil Rubbed Bronze; Bright Chrome
DOOR THICKNESS
1 3/16” to 2”, up to 5” with Extension Kit (Sold Separately)
BACKSET
Adjustable
TOTAL COVERAGE WITH TRIM PLATES
6 1/2” L x 2 1/2” W
DOOR PREP
Covers standard 2 1/8″
MATERIAL
Zinc-plated Steel with Teflon coated stainless steel interior components
APPLICATION
Exterior & Interior Use
Weather Resistant
WARRANTY
Lifetime Mechanical
Compatible With (Sold Separately)
GB2500 Gate Box
Key Override System
Extension Kit
Adjustable Latch
T Cover Plate 2500
T Metal Trim Plate
Push Pull Guard
