Description
Specifications:
Size: 1′
2 keys
Finish: Satin Chrome
CAM: Z01 Standard Yale
UL 437 listed
Grade 1 Certification
BHMA A156.30 Level A Certification the cylinder
Protect against drill, wrenching, bumping and prying attacks
Solid Brass Construction
Patented Protected Keys
Features and benefits:
Medeco
®

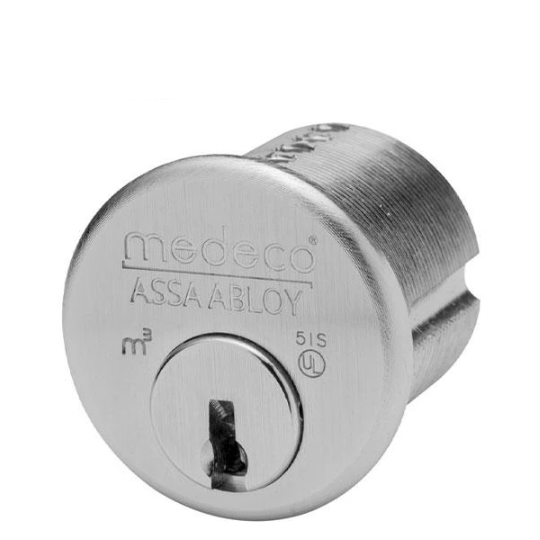

Mortise cylinders have threads on the outside of the shell and are designed to be screwed into other manufacturer’s mortise lock cases. A cam on the back of the cylinder operates the lock mechanism and a set screw holds the mortise cylinder in place.
10 series mortise cylinders, are UL437 listed for drill and pick resistance, and the those that incorporate the Biaxial
®
design, offer utility patented key control.
Mortise cylinders can be ordered with a variety of different cylinder technologies, including the features below for Medeco
³
.
Utility patented key control, (for cylinders that incorporate the Medeco
3
design), provides protection against the unauthorized duplication of keys
A special elevating and rotating pin tumbler design, along with false slots on the bottom pins, mushroom top pins and a sidebar mechanism, work together, to provide superior pick resistance
Angled cuts on the keys, along with fore and aft positioning, and the reciprocal slider of the Medeco
3
design, provide added dimensions that dramatically increases key combinations and enables Medeco
®
to produce some of the largest master key systems in the industry
Hardened steel inserts, positioned in critical areas of the cylinder, provide a high degree of drill resistance
Solid brass construction provides high quality and long cylinder life
Set screw pin chamber caps allow quick and easy pinning and re-keying without the need to take the cylinder apart
Large variety of cylinder lengths and cam/tailpiece configurations provide excellent retrofit capability and reduce the need to replace the entire locking device
Applications
Flexible options designed to retrofit various manufacturers of Mortise and Rim locks
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact Medeco directly at 800-839-3157 or visit their support page
here
. Once you have the ticket contact UHS Hardware for the return.
